WE RECOMMEND PRINTING THIS PAGE FOR REFERENCE.

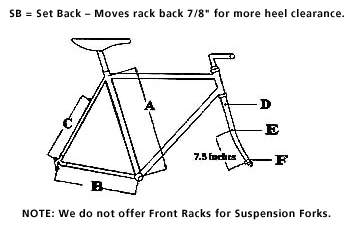

Dimensions for Rear Racks:

A _____ Frame size (center to center)

B _____ Chainstay length (center to center)

C _____ Dropout eyelet to seatstay braze-on (measured parallel to seatstay)

Pannier size: Small___ Medium___ Large___

Shoe size: _____

Dimensions for Front Racks:

D _____ Circumference of fork blade at point D (for High Front Rack)

E _____ Circumference at point E (7.5 inches up from dropout eyelet for Low Front Rack)

F _____ Circumference at point F (just above eyelet on dropout)
